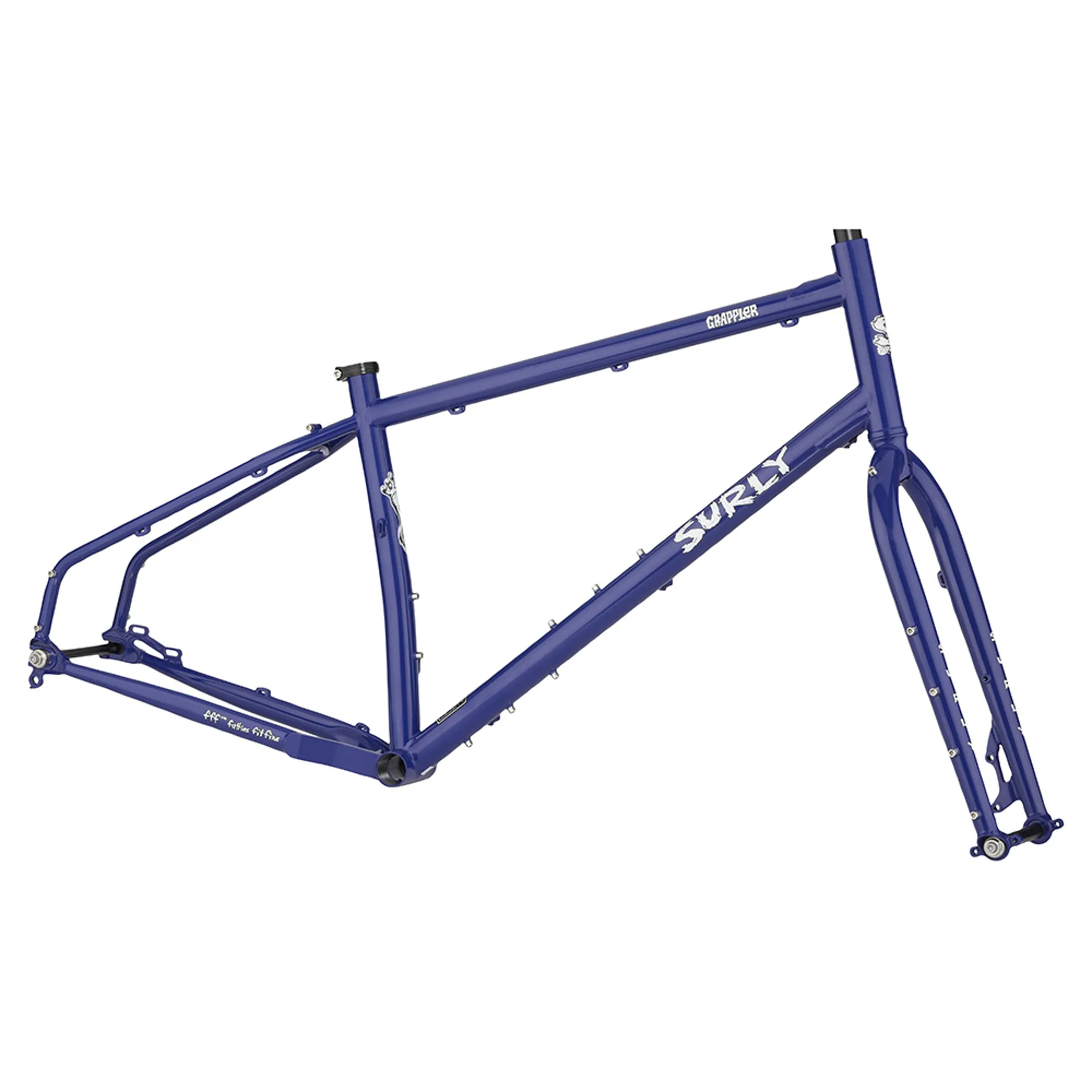

Surly Grappler Trail Bike Frameset in Subterranean Homesic Blue

Season:2024

Brand:Surly - Bikes/Frames

Code:cisemoHnaenarretbuSulbg-4

All of our bikes come with two free Bicycle Doctor services in the first six months - hooray!

A trail bike tailored for drop bars

off-road enthusiasts have been frankensteining drop bars onto trail bikes for decades, so surly designed the grappler to scratch that itch with a little more precision. Engineered first and foremost around a stable and comfortable drop-bar hand position, its trail-ready geo provides a spirited ride on mixed terrain.

Cleared for girthy tyres and decorated with an array of mounts for hauling your daily provisions and overnight gear, the grappler is ready to take you and your paraphernalia down that overgrown fire road for an extrasensory experience. There's nothing to be afraid of. Probably.

  • Featuring surly's versatile gnot-boost spacing, allowing riders to run 142mm or boost 148mm rear hubs; thru-axles; stealth dropper post routing; non-suspension corrected
  • custom dropouts ready to run single-speed or internally geared hub setups
  • seatstay-mounted bottle bosses, plus three-pack mounts at the top and bottom of the down tube
  • clearance for 27.5 x 2.8" or 29 x 2.1" tyres (with or without mudguards)
Technical Information
  • Frame Construction
    100% Surly Chromoly Steel frame, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
  • Fork Construction
    100% Surly Chromoly Steel fork, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
  • Rear Dropout Configuration
    Horizontal slotted with optional vertical dumpout
  • Rear Hub Spacing
    Gnot-Boost 145mm; 12 x 142mm or 12 x 148mm (Surly axle included); 10 x 135mm with Surly 10/12 Adapter Washers (not included)
  • Front Hub Spacing
    15 x 110mm (Surly axle included)
  • Rear Brake [5]
    Disc - 51mm I.S. (203mm max rotor)
  • Front Brake
    Disc - 51mm I.S. (203mm max rotor)
  • Headtube
    Ø34mm
  • Steerer Tube
    Ø28.6mm
  • Crown Race
    Ø30mm (1-1/8")
  • Stock Headset Upper (S.H.I.S)
    EC34 or ZS34
  • Stock Headset Lower (S.H.I.S)
    EC34
  • Seat Collar
    33.1mm
  • Seatpost
    Ø30.9mm
  • Front Derailleur (Clamp)
    High direct mount top-pull (Ø34.9mm) 26mm offset adapter (not included) for 142 or 135mm rear hub spacing 29mm offset adapter (not included) for 148mm rear hub spacing
  • Max Chainring (CL) [3]
    1x (mtn): 36T
    2x (mtn): 36/26T
    1x (Boost): 38T
    2x (Boost): 39/32T
  • Bottom Bracket
    73mm BSA, threaded
  • Tire Clearance Frame [1]/[2]
    27.5 x 3” (27.5 x 2.8” with fender)
    29 x 2.1–2.5” with or without fender (2.1” clearance with wheel all the way forward; 2.5” clearance with wheel all the way back in dropout)
  • Tire Clearance Fork [1]
    27.5 x 2.8” (27.5 x 2.6” with fender)
    29 x 2.2” (29 x 2.0” with fender)
  • Rigid Fork Spec
    420 x 50mm
  • Design Suspension Fork Length [4]
    N/A
  • Max Suspension Fork Length [4]
    420mm
  • Bottle Mounts Frame
    3-pack mounts on upper and lower downtube; seat tube bottle mounts on frame sizes S–XL
  • Bottle Mounts Fork
    3-pack mounts on each fork blade
  • Rack Mounts Frame
    Yes (upper and lower threaded)
  • Rack Mounts Fork
    Yes (upper and mid-blade threaded)
  • Fender Mounts Frame
    Yes
  • Fender Mounts Fork
    Yes
  • Other Features
    Internal dropper post routing

[1] Different tire and rim combinations will result in different clearances.
[2] Depending on drivetrain configuration, tire clearance may be limited by the chain and not the frame.
[3] Listed chainring clearance is worst case scenario. Clearances vary widely depending on components and configurations.

Sizing Information

Geometry

MY22 Ghost Grappler Geometry - 27.5
units: Millimeters
SIZEXSSMMDLGXL
Rider Height1.42m+1.52m+1.65m+1.75m+1.85m+
Reach381.0405.0420.0444.0458.0
Stack585.0604.0623.0641.0660.0
Head Tube Angle69.5°69.5°69.5°69.5°69.5°
Head Tube Length160.0180.0200.0220.0240.0
Seat Tube Length316.0386.0437.2488.0539.0
BB Drop50.050.050.050.050.0
Wheelbase1057.01088.01109.01140.01162.0
Chainstay Length425.0425.0425.0425.0425.0
Top Tube Length, Effective560.0590.0610.0640.0660.0
Seat Tube Angle73.0°73.0°73.0°73.0°73.0°
Standover Height719.0762.0796.0830.0863.0
Stem Length60 or 7060 or 7060 or 7060 or 7060 or 70
Stem Angle6.0°6.0°6.0°6.0°6.0°
Handlebar Width400420440460480
Crank Length170170175175175
Fork Length420420420420420
Fork Rake50.050.050.050.050.0

*Standover is measured from the top of the TT, at the center, with a tire measuring approximately Ø714mm
