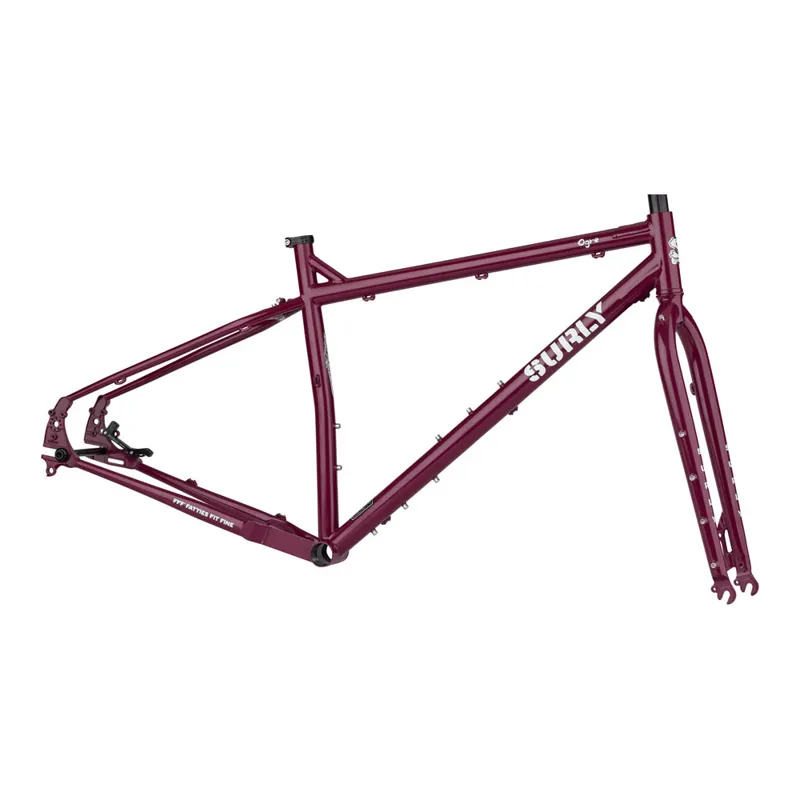

Surly Ogre 29 Frameset in Fermented Plum Purple

Brand:Surly - Bikes/Frames

Code:FMSUOG241Um

The Ogre can get you to your job during the week, then way out of town on the weekend. It’s not sluggish on pavement or gravel and can also hold its own on singletrack. Ogre brings several sensible features to the 29er platform, including horizontal slotted dropouts with Gnot-Boost spacing, a tweaked non-suspension corrected geometry, and a beefy tyre clearance.

  • 100% Surly Chromoly steel, double-butted main triangle
  • TIG-welded, Horizontal slotted with derailleur hanger, Gnot-Boost spacing allows the use of 135mm QR hub, 142 x 12mm thru-axle or 148 x 12mm Boost hubs. Features Rohloff torque arm slot and threaded eyelets for mudguards, racks and Surly trailer mounts
  • Full-length Surly Trip Guide housing line guides for derailleurs and brakes; two sets of bottle cage mounts; upper seatstay threaded barrels, mid- and low-blade fully threaded through-blade fork eyelets; threaded holes for racks, mudguards and trailer mounting nuts; Rohloff OEM2 axle plate mounting slot
  • Disc brakes only. Disc mounts are 51mm IS. Note: rear disc brake is limited to 160mm maximum rotor diameter and requires the use of Surly caliper adaptor (included with frames and bikes)
  • Frame is E.D. coated for increased life expectancy
  • Tyre clearance for 29 x 2.5" or 27.5 x 3"
Technical Information
  • Frame Construction
    4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated
  • Fork Construction
    4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
  • Rear Dropout Configuration
    Horizontal slotted with optional vertical dumpout
  • Rear Hub Spacing
    Gnot-Boost 145mm
    12 x 142mm or 12 x 148mm (axle included)
    10 x 135mm with Surly 10/12 Adapter Washers (not included)
  • Front Hub Spacing
    10 x 100mm
  • Rear Brake
    Disc - 51mm I.S. (160mm max rotor)
    Rim - Canti (removable posts)"
  • Front Brake
    Disc - 51mm I.S. (203mm max rotor)
  • Head Tube
    Ø34mm
  • Steerer Tube
    Ø28.6mm (1-1/8")
  • Crown Race
    Ø30mm (1-1/8")
  • Stock Headset Upper (S.H.I.S.)
    EC34/28.6
  • Stock Headset Lower (S.H.I.S.)
    EC34/30
  • Seat Collar
    Ø30mm
  • Seatpost
    Ø27.2mm
  • Front Derailleur (Clamp)
    High direct mount top-pull (Ø31.8mm)
    26mm offset adapter (not included) for 142 or 135mm rear hub spacing
    29mm offset adapter (not included) for 148mm rear hub spacing
  • Max Chainring (CL)
    1x (Mtn): 42T
    2x (Mtn): 34/46T
    3x (Mtn): 24/36/48T
    1x (Boost): 46T
    2x (Boost): 42/48T
  • Bottom Bracket
    73mm threaded (1.37" x 24TPI)
  • Tire Clearance Frame
    27.5 x 3.0” (27.5 x 2.8" with fenders)
    29 x 2.6" (29 x 2.5" with fenders)
  • Tire Clearance Fork
    27.5 x 3.0" (w/o fenders) 27.5 x 2.8" (w/ fenders)
    29 x 2.6" (w/o fenders) 29 x 2.5" (w/ fenders)
  • Rigid Fork Spec
    447 x 43mm
  • Max Suspension Fork Length [4]
    N/A
  • Bottle Mounts Frame
    2 Three-Pack (XS)
    1 Standard + 2 Three-Pack (S - XL)
  • Bottle Mounts Fork
    4 Three-Pack
  • Rack Mounts Frame
    Yes (upper and lower threaded)
  • Rack Mounts Fork
    Yes (upper, lower, and mid-blade threaded)
  • Fender Mounts Frame
    Yes
  • Fender Mounts Fork
    Yes
  • Other Features
    Dedicated Rohloff cable routing and mount for OEM 2 axle plate
    Dedicated Surly Trailer mounts
Sizing Information

Geometry

MY22 Ogre Geometry
units: Millimeters
SIZESMMDLGXL
Reach395.5410.5427.6447
Stack592603.4613632
Head Tube Angle71.5°72.0°72.0°72.0°
Head Tube Length110120130150
Seat Tube Length406.4457.2508558
BB Drop68686868
Wheelbase1049.41064.51084.61110
Chainstay Length440440440440
Top Tube Length, Actual545.6560.7580.2607
Top Tube Length, Effective575595615640
Seat Tube Angle73.0°73.0°73.0°73.0°
Standover Height763.5795.7824.5857.85
Stem Length708090100
Stem Angle
Handlebar Width700740740740
Crank Length170175175175
Fork Length447447447447
Fork Rake43434343
